远距激光传感器

The optoNCDT 1910 laser sensor offers measuring ranges of 500 mm and 750 mm and is therefore designed for applications where a large measuring range or measurement distance is required. A high measuring rate up to 9.5 KHz and the intelligent exposure control ensure fast and reliable results in dynamic industrial applications. The small housing with integrated controller saves space during machine integration and can be operated at ambient temperatures of up to 200 °C with an optionally available cooling housing.

The optoNCDT 1760-1000 long-range laser sensor with a measuring range of 1000 mm is designed for applications where a high measurement distance is required. The sensor offers real-time surface compensation, which determines and controls the reflectance of the target during the exposure in real time. This enables

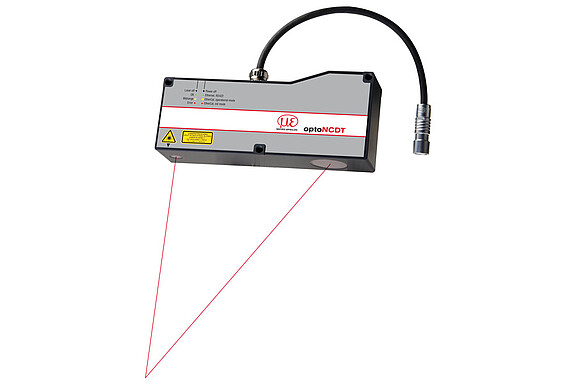

The optoNCDT 1710 and 2310 long-range laser sensors are designed for applications where a high measuring distance is required. However, the relatively small measuring range facilitates extremely precise measurement at a large distance.
